Description

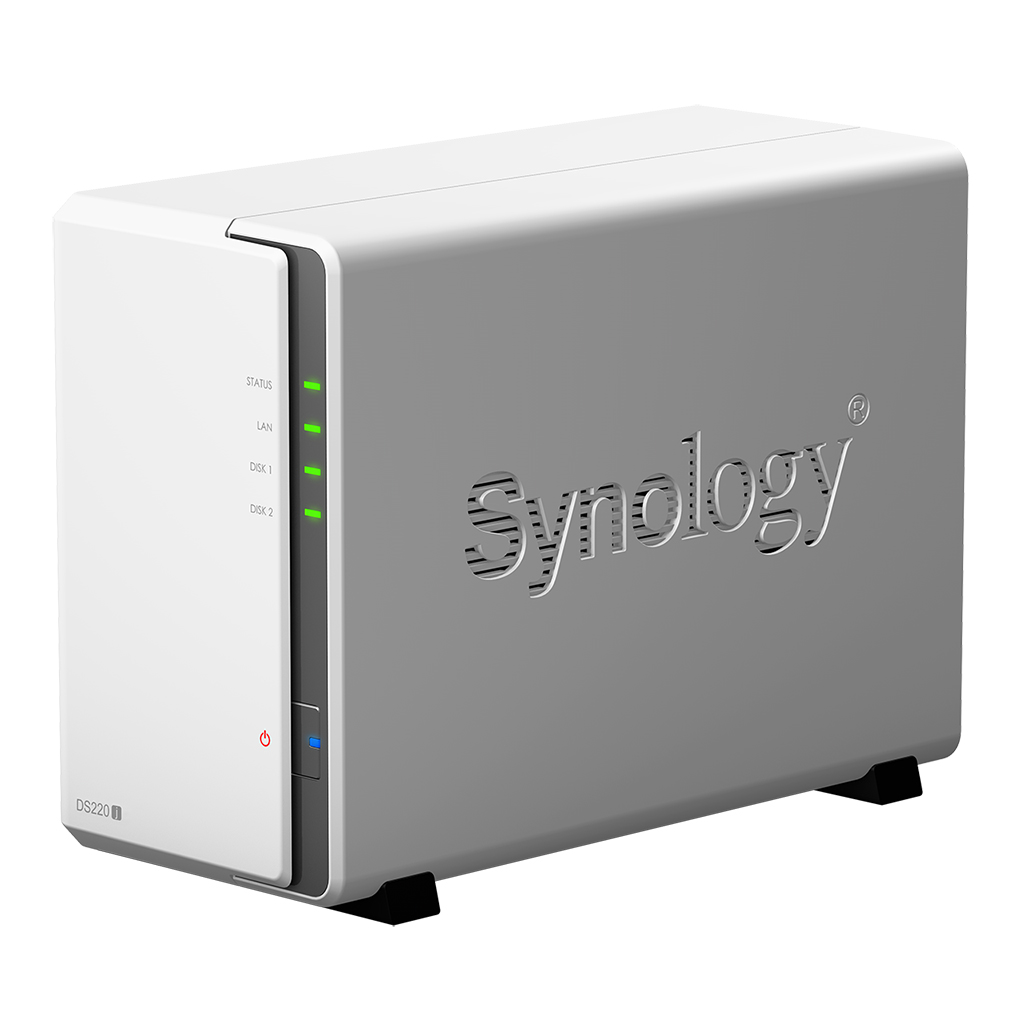

SYNOLOGY DS220J DISK STATION / NAS SERVER / 2 BAYS / SATA 6GB/S / RAID 0, 1, JBOD / RAM 512 MB / GIGABIT ETHERNET / ISCSI | DS220J
Synology Disk Station DS220J is an entry-level network-attached storage for your household to store and share photos, videos, documents, and all types of personal data
The two-bay private cloud solution provides complete and intuitive data protection approaches for you, to easily back up computer data and mobile photos with just a few clicks
Special Features:
- 24/7 file server for your household to store, share and backup personal data
- DiskStation Manager (DSM) brings intuitive operation flow and reduces learning curve
- Integrated media server to support multimedia content streaming
- Freely access private cloud files on-the-go and back up mobile photos with iOS and Android apps
- Safeguard digital assets with cross-platform computer backup applications
Product Specifications
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Width | 10 cm |
| Depth | 22.55 cm |
| Height | 16.5 cm |
| Weight | 880 g |
| Processors Installed | 1 x Realtek Semiconductor RTD1296 1.4 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 512 MB DDR4 |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, JBOD |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Network / Transport Protocol | PPTP, L2TP, IPSec, iSCSI, FTP, SMB, NFS, SFTP |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH |
| Network Services Compatibility | Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Features | Firewall protection, Access Control List (ACL) support, iTunes server, FTP server, reset button, PXE support, DNS server, VPN Server |
| Encryption Algorithm | SSL, TLS |
| Compliant Standards | DLNA CERTIFIED |
| IP Cameras Supported | 12 |
| Compression Format | H.264 |
| Expansion Bays | 2 (total) / 2 (free) x internal – 2.5″ / 3.5″ |
| Interfaces | 2 x USB 3.0 – Type A ¦ 1 x Ethernet 1000Base-T – RJ-45 |
| Cables Included | 1 x network cable |
| Features | Security lock slot (cable lock sold separately), wake on LAN, built-in cooling fan, hardware encryption, Hybrid RAID, VPN support |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Service & Support | Limited warranty – 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 – 95% |
